| CW463-FR
( Synthetic Fiber-Curling Machine ) |
| |
|
CW463FR-CURL ( Old Item Code: CW463-DRY) CURLING MACHINE FOR SYNTHETIC FIBERS
<> Used in making Syntehtic fiber (hair) curly or wavy
<> Used in having wet Wigs, wet Hairpieces to be dried in both Human hair and Synthetic fiber
<> Used in having bulky Human hair dried after dyeing or hair-conditioning
<> Used in having bases or caps of
Toupees dried and formed (shaped) after chemical treatment |
| |
NEW
TECHNOLOGY
FOR QUALITY & SAFETY |
|
| |
SIZE-A
( CW463FR-N606050 )
For a wig shop |
CW463-FR-A605050
* Inside Size : 600 mm x
500 mm x 500 mm
* Outside Size: 780
x 780 x1260 (W x D x H, mm)
* Temperature Range: Max 250℃
* Temperature Controller: Digital P.I.D controller
* Eletrical Safety Device
* Material: SUS #304, Stainless steel
* Motor: Fan Motor 2X6"
* WIndows : Tempered Safety Glass/Three Fold (210x330)
* Electric Requirements: 220VAC, 1Ø
* Power Consumption : 2.2 KW |
| |

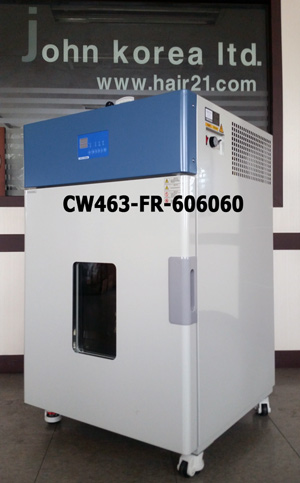

SIZE-B
(CW463-FR-N606060)
For a small factory producing 40 ~ 60 pcs of wigs
a day |
CW463-FR-B606060
* Inside Size : 600 mm x
600 mm x 600 mm
* Outside Size: 780
x 880 x1360 (W x D x H, mm)
* Temperature Range: Max 250℃
* Temperature Controller: Digital P.I.D controller
* Eletrical Safety Device
* Material: SUS #304, Stainless steel
* Motor: Fan Motor 2X6"
* WIndows : Tempered Safety Glass/Three Fold (210x330)
* Electric Requirements: 220VAC, 1Ø
* Power Consumption : 2.8 KW |
| |
SIZE-C
(CW463-FR-N9090100) |
CW463-FR-C9090100
* Inside Size : 900 mm x 900 mm x 1000
mm
* Outside Size: 1080
x 1120 x 1730 (W x D x H, mm)
* Temperature Range: Max 250℃
* Temperature Controller: Digital P.I.D controller
* Eletrical Safety Device
* Material: SUS #304, Stainless steel
* Motor: Fan Motor 3X6"
* WIndows : Tempered Safety Glass/Three Fold (210x330)
* Electric Requirements: 380VAC, 3Ø
* Power Consumption : 7 KW |
| |
SIZE-D
(CW463-FR-N9090100) |
CW463-FR-D9090140
* Inside Size : 900 mm x 900 mm x 1400
mm
* Outside Size: 1550
x 1060 x 1800 (W x D x H, mm)
* Temperature Range: Max 250℃
* Temperature Controller: Digital P.I.D controller
* Eletrical Safety Device
* Material: SUS #304, Stainless steel
* Motor: Fan Motor 3X8"
* WIndows : Tempered Safety Glass/Three Fold (210x330)
* Electric Requirements: 380VAC, 3Ø
* Power Consumption : 11 KW |
| |
|
|
| |
SIZE -L
(Old System) |
(Inside
Size) 900 mm x 900 mm x 1400 mm |
| |
SIZE XL
(Old System)
( CW463FR-9090160) |
(Inside-size) 900 mm
x 900 mm x 1,600mm
(Outside-size) 1050 mm deep x 1220 mm (+ 300 mm for Control Box) x 2,450
mm High) for real wig factory's usage |
|
